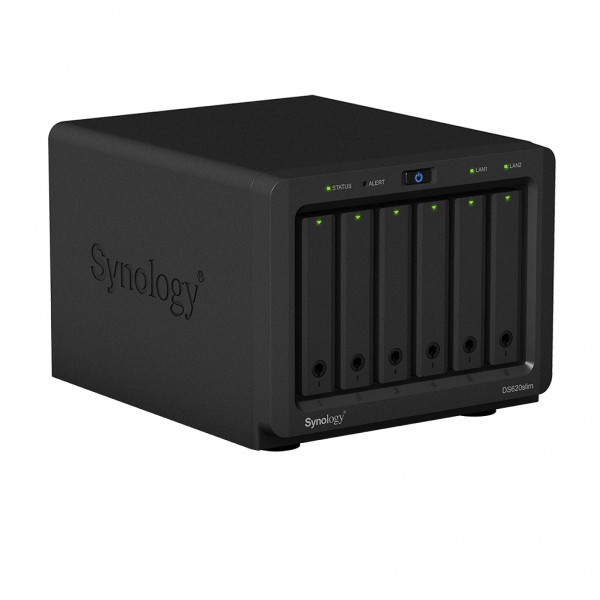

Thông tin phần cứng Thiết bị lưu trữ NAS Synology DS620slim
| CPU | Intel Celeron J3355 dual-core 2.0 GHz, burst up to 2.5 GHz |
| Hardware encryption engine | Yes (AES-NI) |
| Hardware transcoding engine | • Supported codecs: H.264 (AVC), H.265 (HEVC), MPEG-2, VC-1 • Maximum resolution: 4K (4096 x 2160) • Maximum frames per second (FPS): 30 |
| Memory | 2 GB DDR3L (expandable up to 6 GB) |
| Compatible drive type | 6 x 2.5” SATA HDD/SSD (drives not included) |
| Hot swappable drive | Yes |
| External port | 2 x USB 3.0 port |
| Size (HxWxD) | 121 x 151 x 175 mm |
| Weight | 1.40 kg |
| LAN | 2 x Gigabit (RJ-45) |
| Wake on LAN/WAN | Yes |
| Scheduled power on/off | Yes |
| System fan | 80 x 80 x 20 mm |
| AC input power voltage | 100V to 240V AC |
| Power frequency | 50/60Hz, single phase |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative humidity | 5% to 95% RH |
| Maximum operating altitude | 5,000 m (16,400 ft) |
Thông tin DSM
| Networking protocol | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN™, L2TP) |
| File system | • Internal: Btrfs, ext4 • External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT |
| Supported RAID type | Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Storage management | • Maximum single volume size: 108 TB • Maximum of system snapshots: 65,5365 • Maximum internal volumes: 64 |
| SSD cache | Read-write cache support |
| File sharing capability | • Maximum local user account: 2,048 • Maximum local group: 256 • Maximum shared folder: 256 • Maximum concurrent SMB/NFS/AFP/FTP connection: 500 |
| Privilege | Windows Access Control List (ACL), application privilege |
| Directory service | Windows® AD integration: Domain users login via SMB/NFS/AFP/FTP/File Station, LDAP integration |
| Virtualization | VMware vSphere® 6.5, Microsoft Hyper-V®, Citrix®, OpenStack® |
| Security | Firewall, encryption shared folder, SMB encryption, FTP over SSL/TLS, SFTP, rsync over SSH, login auto block, Let’s Encrypt support, HTTPS (customizable cipher suite) |
| Supported client | Windows 7 and 10, Mac OS X 10.11 onwards |
| Supported browser | Chrome®, Firefox®, Edge®, Internet Explorer® 10 onwards, Safari® 10 onwards; Safari (iOS 10 onwards), Chrome (Android™ 6.0 onwards) on tablets |
| Interface Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svensk, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, |
Các gói và ứng dụng
| Synology Drive | Provide a universal portal to synchronize your files across various platforms, including Windows, macOS, Linux, Android and iOS. The built-in universal portal allows you to access data anytime and anywhere. • Maximum number of hosted files: 500,000 • Maximum number of concurrent connections for PC clients: 450 |
| File Station | Virtual drive, remote folder, Windows ACL editor, compressing/extracting archived files, bandwidth control for specific users or groups, creating sharing links, transfer logs |
| FTP Server | Bandwidth control for TCP connections, custom FTP passive port range, anonymous FTP, FTP SSL/TLS and SFTP protocol, boot over the network with TFTP and PXE support, transfer logs |
| Presto File Server | High-speed data transfer over WAN with exclusive SITA technology between Synology NAS and desktop |
| Cloud Sync | One or two-way synchronization with public cloud storage providers including Alibaba Cloud OSS, Amazon Drive, Amazon S3-compatible storage, Backblaze B2, Baidu Cloud, Box, Dropbox, Google Cloud Storage, Google Drive, hubiC, MegaDisk, Microsoft OneDrive, OpenStack Swift-compatible storage, Tencent COS, WebDAV servers, Yandex Disk |
| Universal Search | Offer global search into applications and files |
| Active Backup for Office 365 | Support Office 365 OneDrive for Business, mail, contacts, and calendar backup and restoration |
| Active Backup for Business | All-in-one backup solution designed for heterogeneous business IT environment, enabling IT admins to remotely manage and monitor protection over PC, servers and VM on one centralized console |
| Collaboration tools | Collaborate with instant message service Synology Chat, online editor Synology Office, and scheduling assistant Synology Calendar • Chat maximum user: 1,000 • Office maximum user: 400 • Calendar: support CalDAV and access via mobile devices |
| Note Station | Rich-text note organization and versioning, encryption, sharing, media embedding and attachments |
| Synology MailPlus Server | Secure, reliable, and private mail solution with high-availability, load balancing, security and filtering design (Includes 5 free email account licenses; additional accounts require the purchasing of additional licenses) |
| Synology MailPlus | Intuitive webmail interface for MailPlus Server, customizable mail labels, filters, and user interface |
| Moments | Support smart AI album with facial and subject recognition, photo editing and sharing features, similar photo detection, auto editing functions such as color correction and angle adjustments, and AI selection of the best photos. Mobile applications are available on iOS and Android devices. |
| Other packages | Video Station, Photo Station, Audio Station, iTunes® Server |
| Surveillance Station | Maximum IP camera: 25 (total of 750 FPS at 720p, H.264) (Including two free camera licenses; additional cameras require the purchasing of additional licenses) |
| Synology Directory Server | Provide a flexible and cost-effective domain controller solution |
| Central Management System | Provide a single interface to manage and monitor multiple Synology NAS |
| VPN Server | Maximum connection: 30, supported VPN protocol: PPTP, OpenVPN™, L2TP/IPSec |
| Mail Server | Supported Mail Server Protocols: POP3, SMTP, IMAP, Support LDAP/AD account |
| Mail Station | Webmail interface for Mail Server to receive emails from multiple POP3 mailboxes, customizable SMTP server |
| Web Station | Virtual host (up to 30 websites), PHP/MariaDB®, third-party applications support |
| Other packages | DNS Server, RADIUS Server, Log Center |
Thiết bị lưu trữ NAS Synology DS620slim
